DC inverter technology and low GWP R32 refrigerant.

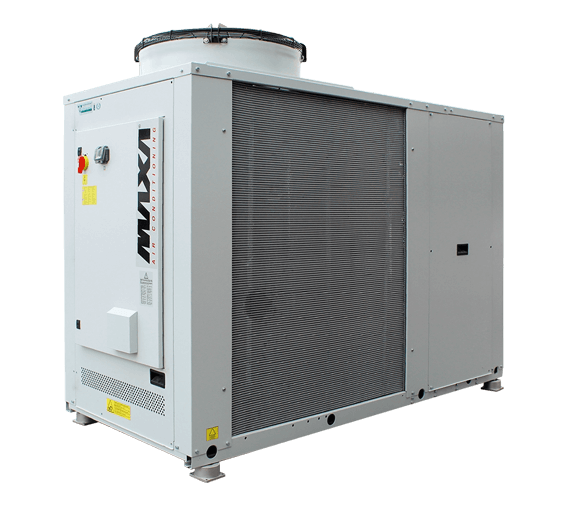

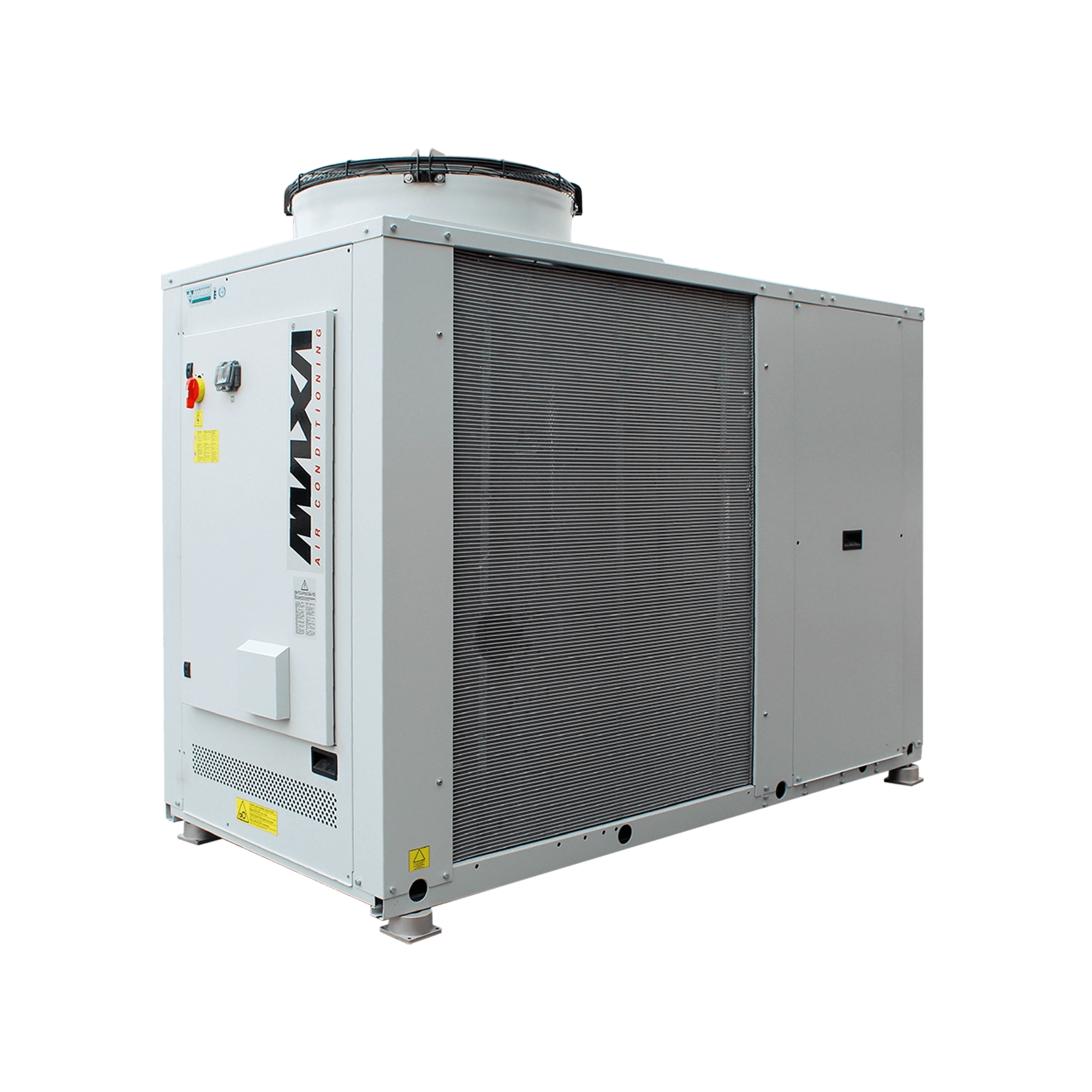

The new Maxa i-HPV5H range is an air/water heat pump with DC inverter technology and low GWP R32 refrigerant for outdoor installation. The range consists of 4 models with DC inverter compressors of hermetic scroll type specifically designed for operation with R32.
The fan is of axial type with airfoil blades, specially shaped to increase the efficiency and reduce noise with electric motor driven in modulation with directly coupled brushless EC motor. New configurations with hydronic kit consisting of single pump or double pump on/off and inverter and an inertial tank on board the machine. New acoustic configurations available are; silenced, super silenced and ducted versions.
A new machine version has become available with a desuperheater that allows to recover about 20% of the condensation heat. The kit includes a brazed plate exchanger and an electronic circulator managed by the on-board control. There is a new low temperature machine version for ‘process’ applications which uses a mixture of water and glycol, allowing the unit’s operating range to be extended by cooling water up to -8°C.
Downloads
Datasheets
Manuals
Technical Bulletins
Model Range
| Img | Model | SKU | Nom. Output kW | Phase | SCOP @35 | SCOP @45 | SCOP @55 | Dimensions (W x D x H) | RRP |
|---|---|---|---|---|---|---|---|---|---|
 | i-HPV5H 0140 | IHPV5H_0140 | 28.9kW | Three | 4.17 | 3.54 | 3.16 | 1850 x 1110 x 1920 | £21,916.00 |
| i-HPV5H 0250 | IHPV5H_0250 | 38.8kW | Three | 4.01 | 3.55* | 3.08 | 1850 x 1110 x 1920 | £26,635.00 |
| i-HPV5H 0260 | IHPV5H_0260 | 43.5kW | Three | 3.74 | 3.39* | 3.03 | 1850 x 1110 x 1920 | £28,494.00 |
| i-HPV5H 0270 | IHPV5H_0270 | 50kW | Three | 3.72 | 3.38* | 3.04 | 1850 x 1110 x 1920 | £32,337.00 |
